全滾柱型MSR系列

MSR E/LE尺寸表×關閉窗口型 號螺栓規格S1S2MSR 25M8M6MSR 30M10M8MSR 35M10M8MSR 45M12M10MSR 55M14M12MSR 65M16M14注*: 單:單滑塊 / 雙:雙滑塊緊密接觸?單位:mm型號外形尺寸滑塊尺寸高度H寬度W長度LW2H2BCC2SL1TT1T2T3NGKe1G1油嘴規格MSR 25EMSR 25LE367097.511

產品簡介 圖片關鍵詞

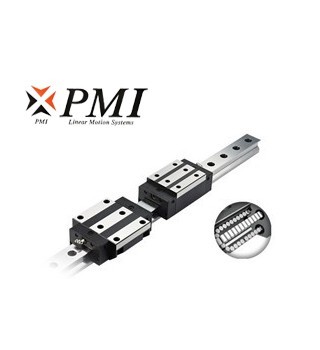

MSR 系列滾柱型直線導軌由于使用滾柱滾動體取代一般的鋼珠滾動體，因此在相同尺寸的線性滑軌上可提供更高的剛性與負載能力，特別適用于講求高精度、高負載與高剛性的設備需求。



產品特性 圖片關鍵詞

?超重負荷?四方向負荷的最佳化設計

?超高剛性


MSR E/LE尺寸表
圖片關鍵詞型 號螺栓規格S1S2MSR 25M8M6MSR 30M10M8MSR 35M10M8MSR 45M12M10MSR 55M14M12MSR 65M16M14

注*: 單:單滑塊 / 雙:雙滑塊緊密接觸

單位:mm
型號外形尺寸滑塊尺寸
高度
H		寬度
W		長度
L		W2

H2

B

C

C2SL1TT1T2T3NGKe1G1油嘴規格
MSR 25E
MSR 25LE		367097.5
115.5		23.54.8574540M863.5
83.5		9.520.2105.86126.66.5M6G-M6
MSR 30E
MSR 30LE		4290112.4
135.2		316725244M1075.9
98.7		1021.6136.771287M6G-M6
MSR 35E
MSR 35LE		48100125.3
153.5		336.5826252M1082.3
110.5		1227.5159.581287M6G-M6
MSR 45E
MSR 45LE		60120154.2
189.4		37.58.11008060M12106.5
141.7		14.535.51512.51013.510.058M6G-PT 1/8
MSR 55E
MSR 55LE		70140185.4
235.4		43.5101169570M14129.5
179.5		17.5411815.51113.5127.95M6G-PT 1/8
MSR 65LE9017030253.51214211082M1623019.556202616.513.5128M6G-PT 1/8


型號導軌尺寸基本額定負荷容許靜力矩重量
寬度
W1		高度
H1		節距
P		E
std.

D × h × d

動負荷C
kN		靜負荷Co
kN		Mp
kN-m		MY
kN-m		MR
kN-m		滑塊
kg		導軌
kg/m
單*雙*單*雙*
MSR 25E
MSR 25LE		2523.5302011 × 9 × 729.6
36.3		63.8
82.9		0.65
1.08		3.82
5.94		0.65
1.08		3.82
5.94		0.73
0.95		0.75
0.95		3.5
MSR 30E
MSR 30LE		2827.5402014 × 12 × 942.8
54.0		91.9
124.0		1.09
1.96		6.38
10.60		1.09
1.96		6.38
10.60		1.27
1.75		1.4
1.72		5
MSR 35E
MSR 35LE		3430.5402014 × 15 × 957.9
73.9		123.5
169.0		1.59
2.94		9.56
16.18		1.59
2.94		9.56
16.18		2.09
2.85		1.95
2.45		7
MSR 45E
MSR 45LE		453752.522.520 × 17 × 1492.8
117.2		193.8
261.6		32.8
5.90		18.76
31.32		3.28
5.90		18.76
31.32		4.40
5.94		3.9
4.5		11.2
MSR 55E
MSR 55LE		5343603023 × 19.5 × 16132.8
172.8		270.0
378.0		5.49
10.60		31.18
55.58		5.49
10.60		31.18
55.58		7.33
10.28		6
7.9		15.6
MSR 65LE6352753526 × 22 × 18277.0624.022.50117.8722.50117.8720.0217.622.4


MSR S/LS尺寸表
圖片關鍵詞

注*: 單:單滑塊 / 雙:雙滑塊緊密接觸

單位:mm
型號外形尺寸滑塊尺寸
高度
H		寬度
W		長度
L		W2

H2

B

C

SlL1TNGKe1G1油嘴規格
MSR 25S
MSR 25LS		404897.5
115.5		12.54.83535
50		M6965.5
83.5		9.510126.66.5M6G-M6
MSR 30S
MSR 30LS		4560112.4
135.2		1664040
60		M81275.9
98.7		10101287M6G-M6
MSR 35S
MSR 35LS		5570125.3
153.5		186.55050
72		M81482.3
110.5		12151287M6G-M6
MSR 45S
MSR 45LS		7086154.2
189.4		20.586060
80		M1019106.5
141.7		172013.5108M6G-PT1/8
MSR 55S
MSR 55LS		80100185.4
235.4		23.5107575
95		M1219129.5
179.5		182113.5127.95M6G-PT1/8
MSR 65LS9012630231.51276120M162023019.516.513.5128M6G-PT1/8


型號導軌尺寸基本額定負荷容許靜力矩重量
寬度
W1		高度
H1		節距
P		E
std.

D × h × d

動負荷C
kN		靜負荷Co
kN		Mp
kN-m		MY
kN-m		MR
kN-m		滑塊
kg		導軌
kg/m
單*雙*單*雙*
MSR 25S
MSR 25LS		2323.5302011 × 9 × 729.6
36.3		63.8
82.9		0.65
1.08		3.82
5.94		0.65
1.08		3.82
5.94		0.73
0.95		0.65
0.85		3.5
MSR 30S
MSR 30LS		2827.5402014 × 12 × 942.8
54.0		91.9
124.0		1.09
1.96		6.38
10.60		1.09
1.96		6.38
10.60		1.27
1.72		1
1.22		5
MSR 35S
MSR 35LS		3430.5402014 × 12 × 957.9
73.9		123.5
169.0		1.59
2.94		9.56
16.18		1.59
2.94		9.56
16.18		2.09
2.85		1.65
2.15		7
MSR 45S
MSR 45LS		453752.522.520 × 17 × 1492.8
117.2		193.8
261.6		3.28
5.90		18.76
31.32		3.28
5.90		18.76
31.32		4.40
5.94		3.2
4.1		11.2
MSR 55S
MSR 55LS		5343603023 × 20 × 16132.8
172.8		270.0
378.0		5.49
10.60		31.18
55.58		5.49
10.60		31.18
55.58		7.33
10.26		5.1
7		15.6
MSR 65LS6352753526 × 22 × 18277.0624.022.50117.8722.50117.8720.0213.322.4
